Details

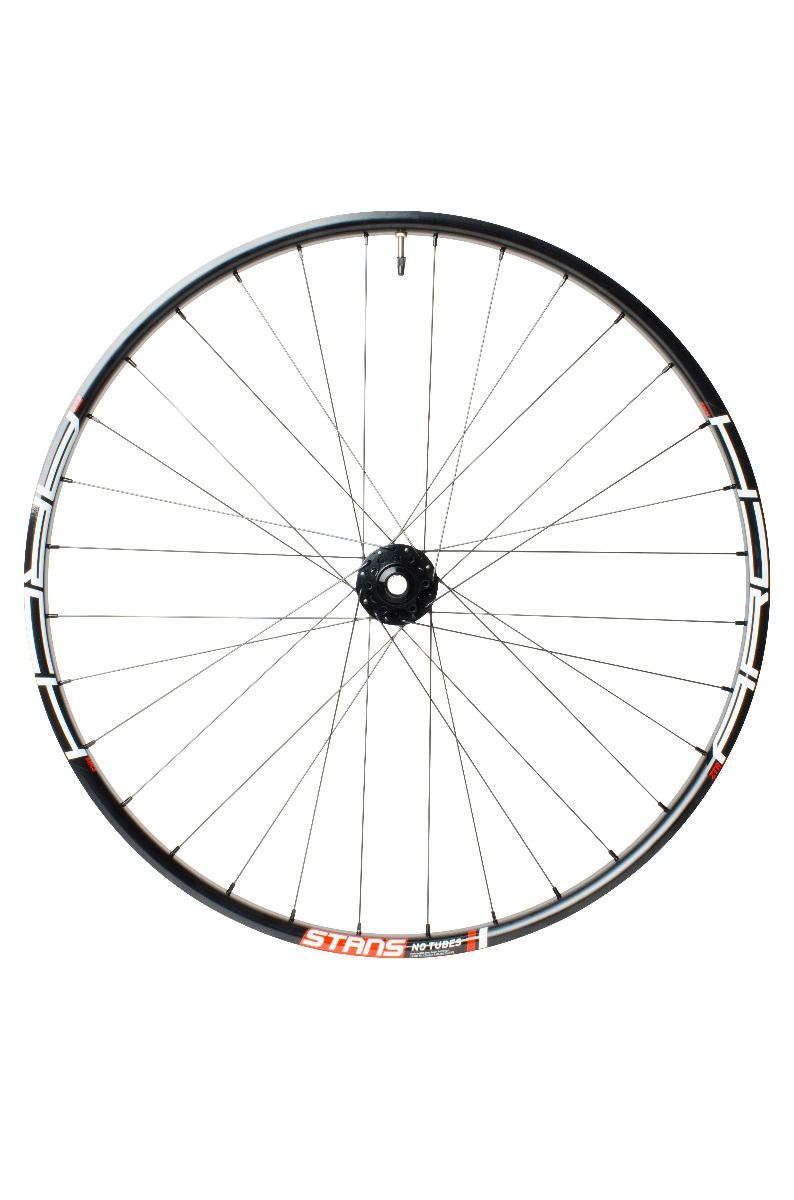

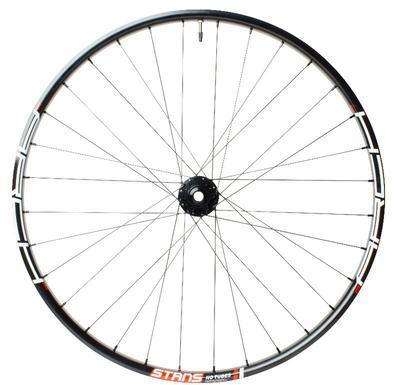

Designed with input from Stan's Enduro World Series teams, the new Arch MK3 is ready to own every trail. WideRight optimized for maximum stability with 2.25" to 2.5" tires, Stan's expanded the internal width out to 26mm while keeping the rim incredibly light. The 27.5" Arch MK3 weighs only 425g. A new proprietary alloy and stronger, low-profile rim shape means the new Arch MK3 is built to last. Featuring Bead Socket Technology, the new Arch MK3 also offers the unmatched traction, control, and reliability only found on genuine Stan’s NoTubes rims.
- The perfect balance of strength and weight
- 24% wider than the Arch EX for improved stability with larger tires
- Same light weight as the Arch EX
- Low-profile shape rolls faster, lasts longer, and helps stop tire pinch flats
- 25% stiffer and stronger for improved handling
- Lighter and more durable rim shape and alloy
- Neo hubs accelerate quicker and last longer
- Most trusted tubeless system for easy setup and low maintenance
- Sapim Secure Lock aluminum nipples
- WideRight optimized for Trail tires / 2.25 - 2.50
- Includes pre-installed tape for tubeless use and presta valve; 15x100mm front wheels include quick-release end caps and quick release; 20x110mm front wheels include 15x100mm end caps
Tubeless-ready rims are compatible with both standard and tubeless-ready tires. When a tubeless-ready tire is mounted on a tubeless-ready rim with special tubeless rim tape, valve, and sealant, the tire and rim form an airtight chamber that no longer requires a tube. This lets you run lower tire pressure with less fear of pinch flats and without the added weight of a tube. Lower tire pressure has many benefits, including greater traction and lower rolling resistance over rough surfaces. The rim can always be used with a tube, as well, by simply removing the tubeless valve stem and installing a standard tube like you would with any non-tubeless tire.
Specs
Size(s) | 27.5-inch |
---|---|
Model | Arch MK3 |
Rim Material | 6061 Aluminum Alloy |
Rim Depth | 16.0mm |
Rim Width |
26.0mm Internal 29.3mm External |
Hub(s) | Neo |
Spokes (Front/Rear) | Sapim Force Black 2.0/1.7/1.8mm |
Holes (Front/Rear) | 28 |
Nipples | Sapim Secure Lock Alloy Black |
Axle(s) | 15x100mm, 15x110mm, 20x110 OS, Lefty SL, Lefty Supermax, SRAM Predictive Steering |
Weight (Front/Rear) | 425g (Rim) |
Valve Type | 35mm Presta |
Extras | Pre-installed tape for tubeless use and presta valve; 15x100mm front wheels include quick-release end caps and quick release; 20x110mm front wheels include 15x100mm end caps |
* Subject to change without notice.
Videos
Stan's NoTubes Arch MK3
Part Numbers
Option | UPC | Store SKU |
---|---|---|
15x110mm | 847746020844 | 210000039780 |
